UP MRCP JimmyJib Mini Remote Control Panel Upgrade

Stanton JimmyJib Mini Remote Control Panel Upgrade (no USB)

Modify for left and right hand operation of Joystick and Zoom & Focus Controls
Add 120VAC IEC Inlet & 5 volt power supply and 4 USB jacks

First, we remove the front panel controls and cut openings on each side for the new laser cut black anodized aluminum cover panels. Then we install (8) 4-40 pemnuts to hold the new panels in place, We add extension wires to the controls (joystick, focus knob and zoom rocker). Then we install your controls in the new panels and configure to your (left or right hand) preference.

If you want to change orientation in the field, just remove the 4 screws from each panel, unplug/reconfigure/replug controls and install the screws. Its that simple...

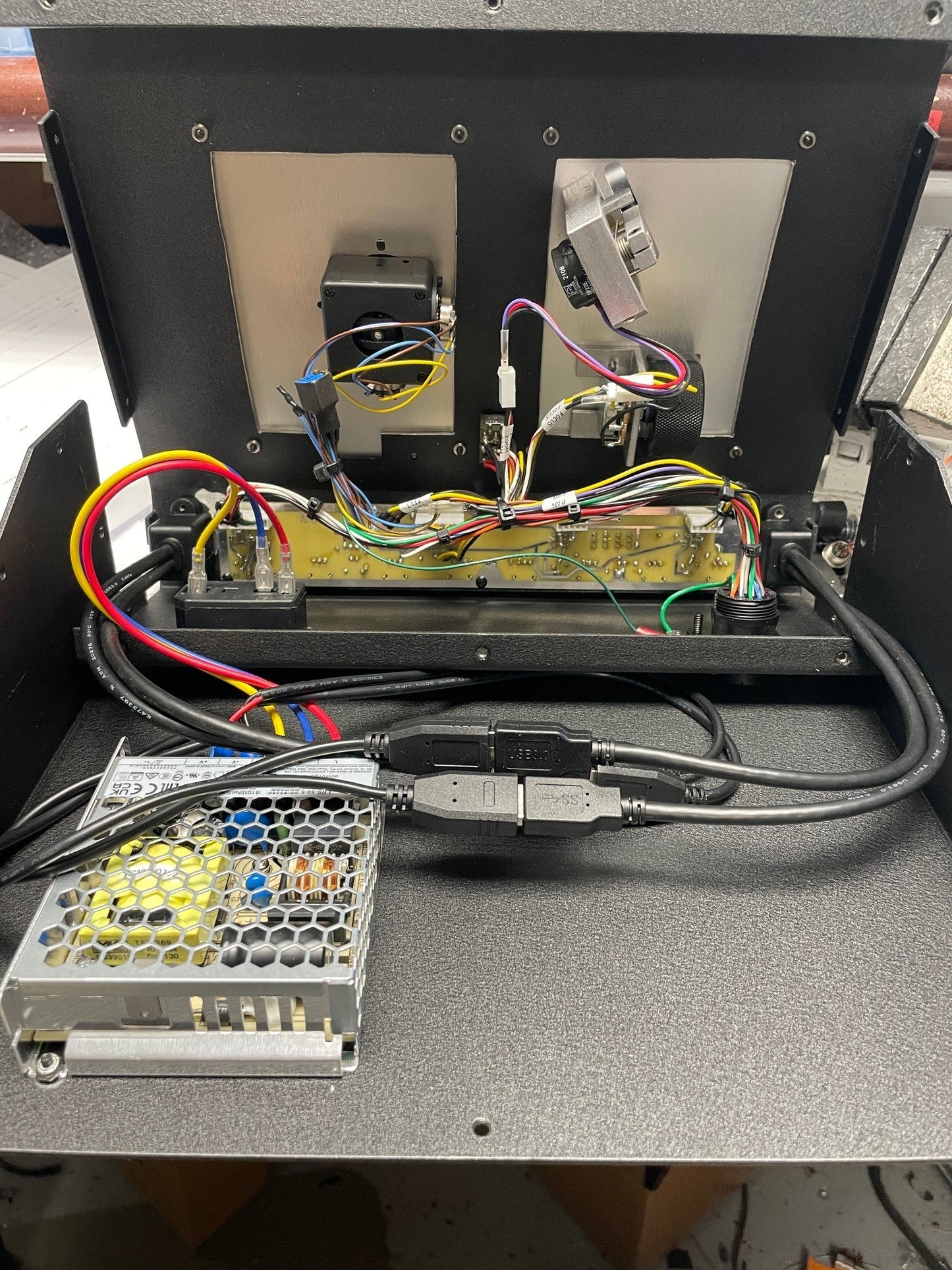

Note: Photos show unit with optional USB power supply and jacks...

-------------------------------------------------------------------------------------------

We can 'optionally' add an IEC 115-230VAC switched inlet to the rear and a 5 volt power supply to power two or more USB outputs on the top left/right,  For this feature order the UP MRCPUSB...

Power Cord UK
Power Cord 6 foot IEC to 3 blade (UK)

https://www.myelectronicsguy.com/products/power-cord-uk

Power Cord US (included as standard)
Power Cord 6 foot IEC to Edison (USA)
