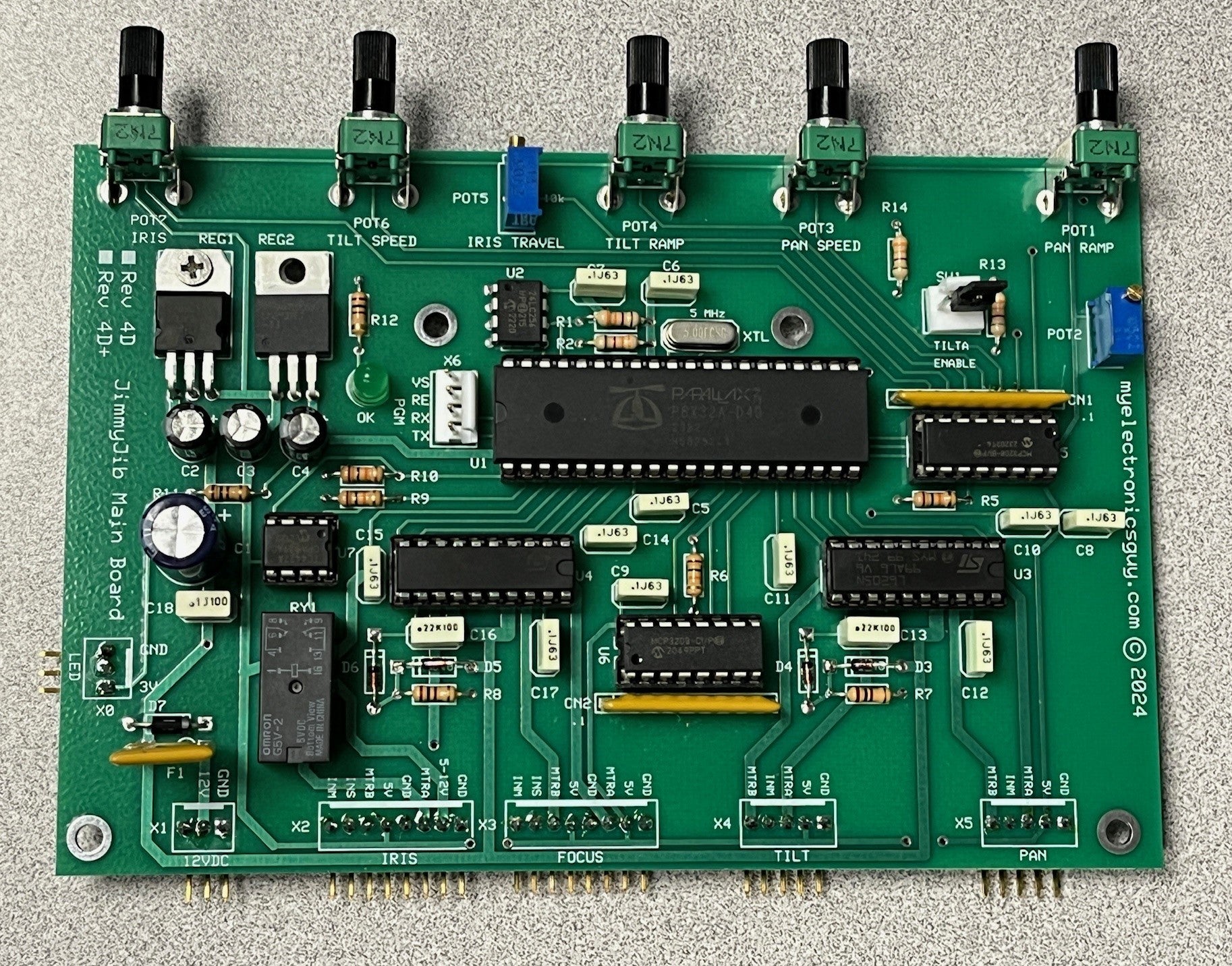

JimmyJib Model 4D+ Replacement Controller Board

This circuit board kit replaces your existing OEM circuit board and provides new features, efficiency and reliability!

(Board size measurement 6" x 4")

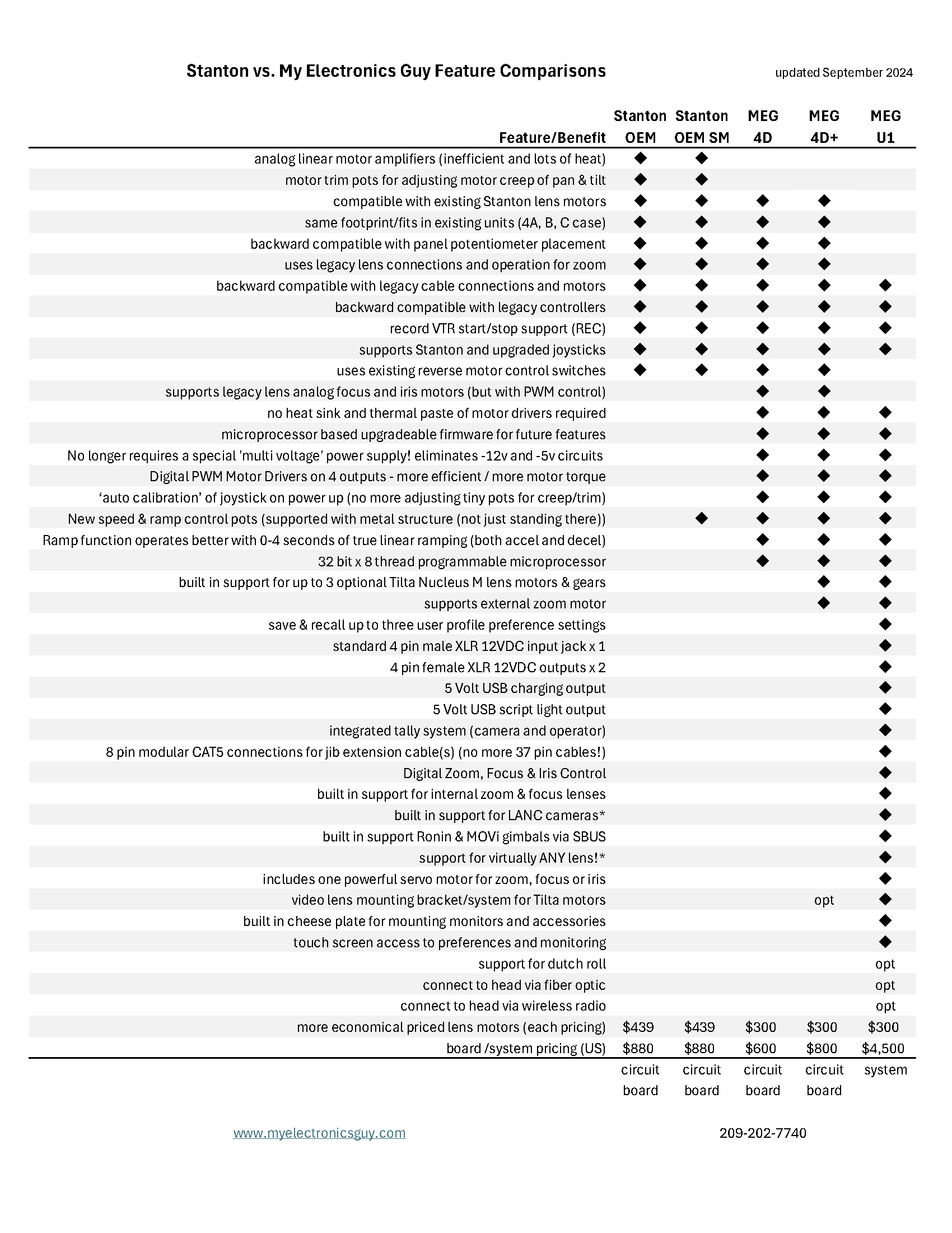

Circuit Board Common Features

• microprocessor based upgradeable firmware for future features
• 20 year proven technology

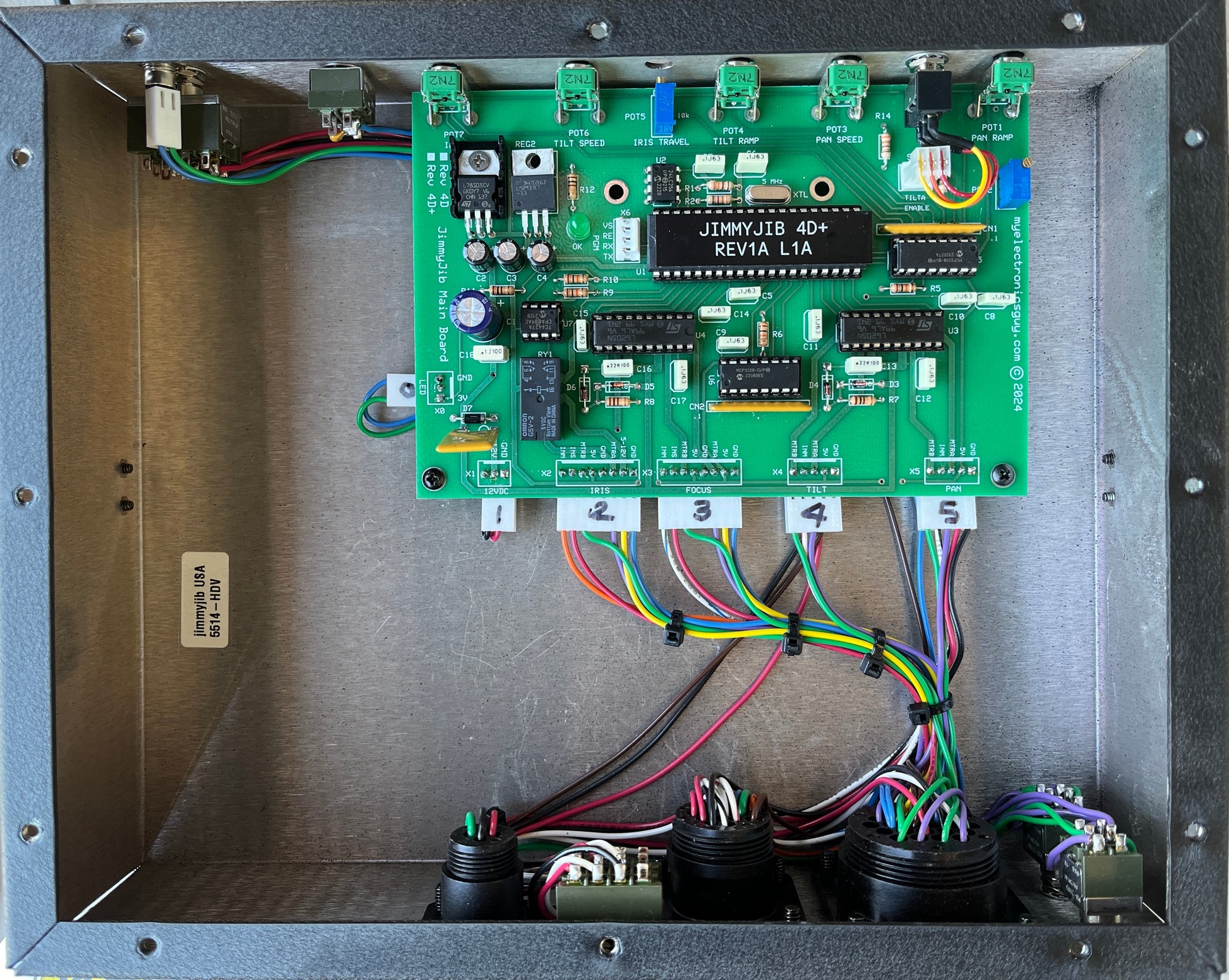

• same footprint/fits in existing units (4A, B, C case)
• backward compatible with legacy cable connections and controllers
• backward compatible with panel potentiometer placement
• record VTR start/stop support (REC)
• eliminates need for -12v and -5v circuits
• No longer requires a special power supply! Continue to use your legacy power supply or any standard, appropriately rated, 12 volt video supply or battery will work!
• Much more dependable!

Digital Pan & Tilt Motor Control (both models of boards)

• ‘PWM’ motor speed control vs. inefficient ‘linear amplifier’ in legacy systems (equals more torque!)
• ‘auto calibration’ of joystick on power up (no more adjusting tiny pots for creep/trim)
• New speed & ramp controls (pots are supported with metal structure (not just standing there)
• Ramp function operates better with 0-4 seconds of true linear ramping (both accel and decel)
• uses existing reverse motor control switches

• compatible with existing Stanton lens motors
• uses legacy lens analog focus and iris motors (but with PWM control)
• uses legacy lens connections and operation for zoom

Digital Focus & Iris Control unique to Model 4D+ - (Plug n Play)

• you get all the features above, plus
• supports Stanton Video Zoom, plus Tilta Nucleus M Focus and Iris motors or
• supports Tilta Nucleus M Zoom, Focus and Iris motors (switchable)

• Includes Model 4D+ Adapter Box for connections

• Purchase Tilta Nucleus M motors and gears separately

***DOES NOT REQUIRE OUR BUZ3-J ADAPTER BOX***

Newer features:

• adjustable joystick deadband via trim pot on circuit board (external adjust)
• decelerate ramping cancelled when moving joystick to opposite axis direction
• adjustable overall zoom speed via trim pot on circuit board (internal adjust)
